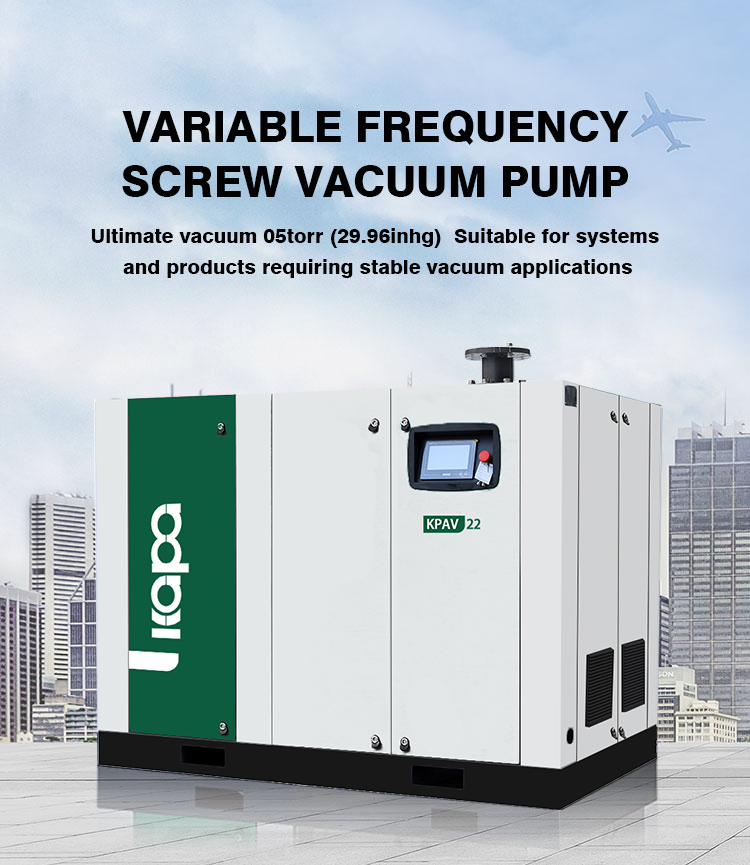

Variable Frequency Screw Vacuum Pump

Variable frequency screw vacuum pump

Air pump is widely used in plastic machinery, pesticide chemical industry, dye chemical industry, brick machinery, low-temperature equipment, paper machinery, pharmaceutical chemical industry, food machinery, industrial electric furnace, electronic industry, fertilizer, metallurgy, petroleum, mining and other fields.

Product Details
Technical Parmeters
Catalogue Download

01- High vacuum capacity

Limit vacuum 0.5torr(29.96inhg) for systems and products requiring stable vacuum applications.


02- Forced lubrication system

The independent oil supply system oil pump is more ideal than the differential pressure lubrication method to ensure that the machine can get the best lubrication state of the host rotor and bearings in any working condition.


03- Low noise Ingenious design of air duct and fully enclosed silent machine sound insulation cover, low noise centrifugal fan, direct drive without gear noise.


04-Oil and gas separator Clever oil and gas separation system design, tangential air intake, built-in multiple separation cores, to achieve cyclone separation and impact separation, exhaust oil content is less than 5PPM.


05- Variable frequency speed regulation provides constant vacuum, energy saving and low energy consumption through stepless flow regulation.

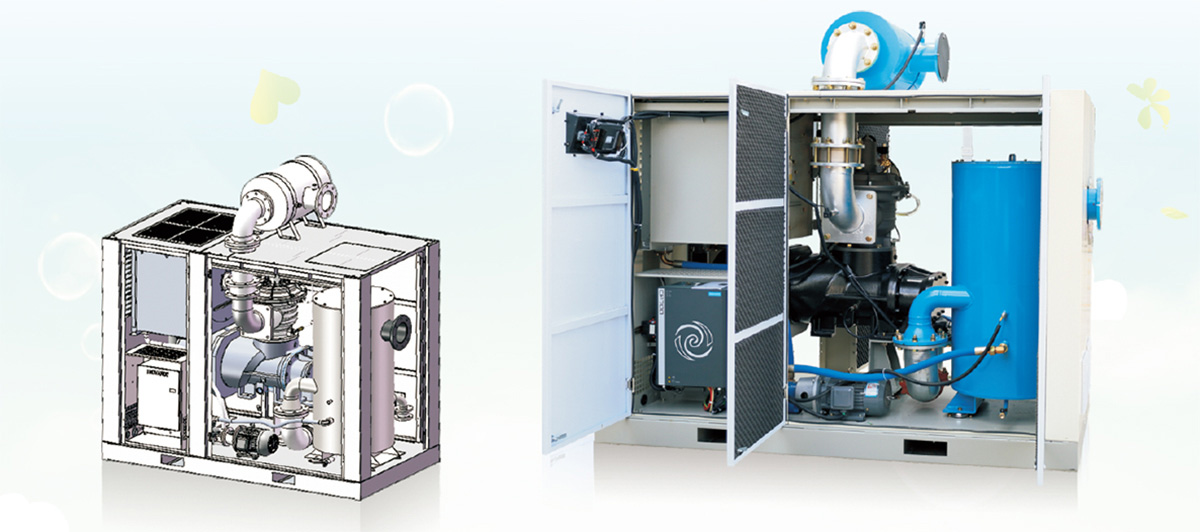

06- Modular design of the whole machine

Independent cooling duct, low resistance system design, minimize energy consumption, reasonable layout design, making maintenance convenient and simple.


Variable frequency screw vacuum pump


Advantages of Kapa brand


Innovate technology to protect the environment.Kappa listens, understands and meets the needs of customers.Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution. With the mission of "innovation embodies value", Kappa Company will continue to promote technological innovation and progress, achieve win-win with global partners, suppliers and employees, create a new world of "energy saving, environmental protection, intelligence and service" in the aerodynamic field, and strive to be a world-class enterprise with world-class standards.


Advantages


1. High quality control(CE,SGS,ISO14001/Energy saving certificate)

2. Fast Delivery( 25-30 days for large orders)

3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)

4. Small order acceptable( Ordering quantity according to your actual needs)


Why Choose Us


Longer service life of the master machine

The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.


Permanent alignment of the electromotor and the master machine

Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.


Variable frequency screw vacuum pump


Model (blower)Exhaust volume (M³/MIN)Pressure (bar)Power(KW)Length*width*height (mm)outlet
size
CAB11-15 VSD31.5112400*1250*1600DN190
CAB15-15 VSD4.61.5152400*1250*1600DN190
CAB22-15 VSD6.31.5222400*1250*1600DN190
CAB37-15 VSD12.21.5372400*1250*1600DN190
CAB45-15 VSD17.11.5452400*1250*1600DN190
CAB55-15 VSD22.61.5552400*1250*1600DN190
CAB55-15 VSD26.31.5552400*1250*1800DN250
CAB75-15 VSD34.11.5752400*1250*1800DN250
CAB90-15 VSD43.81.5902400*1250*1800DN250


AIR COMPRESSOR MAINTENANCE

01

The air compressor shouldbe placed in a place withclean air and good ventilation.

The air compressor shouldbe placed in a place withclean air and good ventilation.

02

The air compressor should be placedhorizontally, with the belt side facingthe wall, and the maintenancespaceshould be reserved.

The air compressor should be placedhorizontally, with the belt side facingthe wall, and the maintenancespaceshould be reserved.

03

Before repairing and disassemblingthe air compressor, please tum offthe power supply and dischargethe air in the air seam.

Before repairing and disassemblingthe air compressor, please tum offthe power supply and dischargethe air in the air seam.

04

When wiring, check whether thefan rotation direction is consistentwith the arrow direction.

When wiring, check whether thefan rotation direction is consistentwith the arrow direction.

ENERGY SAVING THCHNOLOGY

Power saving of 17000o kWh per month

The starting power of the original system is 555kw,and the starting power of the new system is 320kw.

Power saving of 17000o kWh per month

Power saving of 54000 kWh per month

The starting power of the original system is 240kW,and the starting power of the new system is 132kw.

Power saving of 54000 kWh per month

Power saving of 86000 kWh per month

The starting power of the original system is 446kW,and the starting power of the new system is 325kW.

Power saving of 86000 kWh per month

Power saving of 260000 kWh per month

The starting power of the original system is 690kw,and the starting power of the new system is 420kw.

Power saving of 260000 kWh per month

Power saving of 167000 kWh per month

The starting power of the original system is 732kW,and the starting power of the new system is 50okw.

Power saving of 167000 kWh per month

Power saving of 79000 kWh per month

The starting power of the original system is 430kw,and the starting power of the new system is 320kw.

Power saving of 79000 kWh per month
