Home > Air Compressor > KQ series Permanent magnetpower frequency screw air compressor series > Permanent Magnet Variable Frequency Screw Compressor > 10HP 7.5KW Rotary Screw Air Compressor 3 Phase 460V 38cfm For Paint Workshop

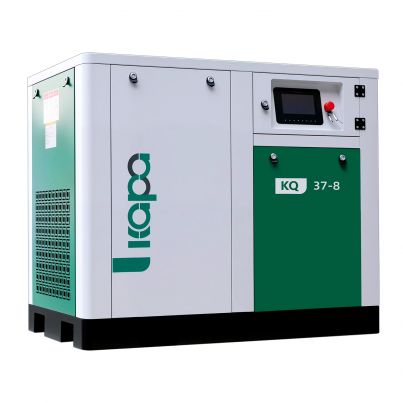

10HP 7.5KW Rotary Screw Air Compressor 3 Phase 460V 38cfm For Paint Workshop

Power : 7.5 kW / 10HP
Exhaust pressure : 125Psi / 8Bar
Exhaust volume : 38CFM
Noise level : 68 dB(A)
Voltage : 460V-480V/60Hz
Phase - Electrical : 3P
Air outlet diameter : RP1/2
Overall Length : 39"
Overall Depth : 28"
Overall Height : 38"
Packing Weight : 480 lbs

Inquire Now Next Product

Product Details

Technical Parmeters

Catalogue Download

KQ SERIES Screw Air Compressor

KQ SERIES

All are screw-type compressor with a modem environmental-protection paint. Its surface machining so many years after the use of castings can effectively avoid corrosion.

Application Range
Mold industry, light and heavy industry, mining, hydropower, seaports, engineering construction, oil and gas fields, railways, transportation, auto repair, electronics, power, machinery, petrochemical, food, and printing industries.

Benefits of Rotary Screw Air Compressors

Compact Design with Small Footprint
Engineered for serviceability and reliability, KAPA compressors deliver superior compressed air performance in a modern, space-saving design. Their small footprint and low noise levels allow flexible installation while saving valuable floor space and reducing operating costs.
Load / No Load Control
Automatically adjusts to high, low, or intermittent air demand, reducing energy consumption, lowering power costs, and improving system reliability.
Easy Maintenance
Certain KAPA rotary screw systems are built with up to 70% fewer components than conventional compressors, helping reduce maintenance complexity and cost.
High Power Output
Designed for exceptional airflow, rotary screws can efficiently power tools and heavy equipment with impressive horsepower.
Reliable in Extreme Temperatures
Capable of pressurizing air in both high and low temperature environments.
Energy Efficient
Produces less heat, consumes less oil, and conserves more energy compared to many other compressors.
Extremely Quiet Operation
Runs quietly and stays cool even in harsh environments. Low noise and compact design enhance installation flexibility.

10HP 7.5KW Rotary Screw Air Compressor 3 Phase 460V 38cfm For Paint Workshop

Returns
If your KAPA air compressor experiences a quality issue within 30 days of purchase, you may contact us for a return.

Warranty
KAPA products include a 1-year full machine warranty from the date of purchase. Free repair services are not available for damage caused by installation errors, improper use, poor oil quality, incorrect maintenance, or the use of non-genuine parts.

Welcome your consultation!

Model	Nominal Power		Working Pressure		Free Air Delivery		重量（KG）	Noise Level	Dimensions (LxWxH)
60Hz	KW	HP	bar	psi	m3/min	cfm	KG	db(A)	（mm）
KQ4-8	4	5.5	8	116	0.61	21.54	135	65	750	750	800
KQ4-10	4	5.5	10	145	0.51	18.01	145	65	750	750	800
KQ5.5-8	5.5	7.5	8	116	0.80	28.25	140	65	750	750	800
KQ5.5-10	5.5	7.5	10	145	0.69	24.37	152	65	750	750	800
KQ5.5-13	5.5	7.5	13	189	0.60	21.19	152	65	750	750	800
KQ7.5-8	7.5	10	8	116	1.06	37.43	191	68	950	650	880
KQ7.5-10	7.5	10	10	145	0.96	33.90	203	68	950	650	880
KQ7.5-13	7.5	10	13	189	0.74	26.13	203	68	950	650	880
KQ11-8	11	15	8	116	1.87	66.04	300	68	1130	750	980
KQ11-10	11	15	10	145	1.85	65.33	342	68	1130	750	980
KQ11-13	11	15	13	189	0.97	34.26	342	68	1130	750	980
KQ15-8	15	20	8	116	2.27	80.16	314	68	1130	750	980
KQ15-10	15	20	10	145	2.21	78.05	398	68	1130	750	980
KQ15-13	15	20	13	189	1.82	64.27	398	68	1130	750	980
KQ18.5-8	18.5	25	8	116	2.83	99.94	383	70	1350	850	1140
KQ18.5-10	18.5	25	10	145	2.80	98.88	430	70	1350	850	1140
KQ18.5-13	18.5	25	13	189	2.18	76.99	430	70	1350	850	1140
KQ22-8	22	30	8	116	3.48	122.90	413	70	1350	850	1140
KQ22-10	22	30	10	145	3.45	121.84	460	70	1350	850	1140
KQ22-13	22	30	13	189	2.76	97.47	460	70	1350	850	1140
KQ30-8	30	40	8	116	4.21	148.67	463	72	1350	850	1140
KQ30-10	30	40	10	145	4.17	147.26	510	72	1350	850	1140
KQ30-13	30	40	13	189	3.39	119.72	510	72	1350	850	1140
KQ37-8	37	50	8	116	5.85	206.59	610	72	1480	1000	1200
KQ37-10	37	50	10	145	5.80	204.83	751	72	1480	1000	1200
KQ37-13	37	50	13	189	4.11	145.14	751	72	1480	1000	1200

AIR COMPRESSOR MAINTENANCE

The air compressor shouldbe placed in a place withclean air and good ventilation.

The air compressor should be placedhorizontally, with the belt side facingthe wall, and the maintenancespaceshould be reserved.

Before repairing and disassemblingthe air compressor, please tum offthe power supply and dischargethe air in the air seam.

When wiring, check whether thefan rotation direction is consistentwith the arrow direction.

ENERGY SAVING THCHNOLOGY

Power saving of 17000o kWh per month

The starting power of the original system is 555kw,and the starting power of the new system is 320kw.

Power saving of 17000o kWh per month

Power saving of 54000 kWh per month

The starting power of the original system is 240kW,and the starting power of the new system is 132kw.

Power saving of 54000 kWh per month

Power saving of 86000 kWh per month

The starting power of the original system is 446kW,and the starting power of the new system is 325kW.

Power saving of 86000 kWh per month

Power saving of 260000 kWh per month

The starting power of the original system is 690kw,and the starting power of the new system is 420kw.

Power saving of 260000 kWh per month

Power saving of 167000 kWh per month

The starting power of the original system is 732kW,and the starting power of the new system is 50okw.

Power saving of 167000 kWh per month

Power saving of 79000 kWh per month

The starting power of the original system is 430kw,and the starting power of the new system is 320kw.

Power saving of 79000 kWh per month
