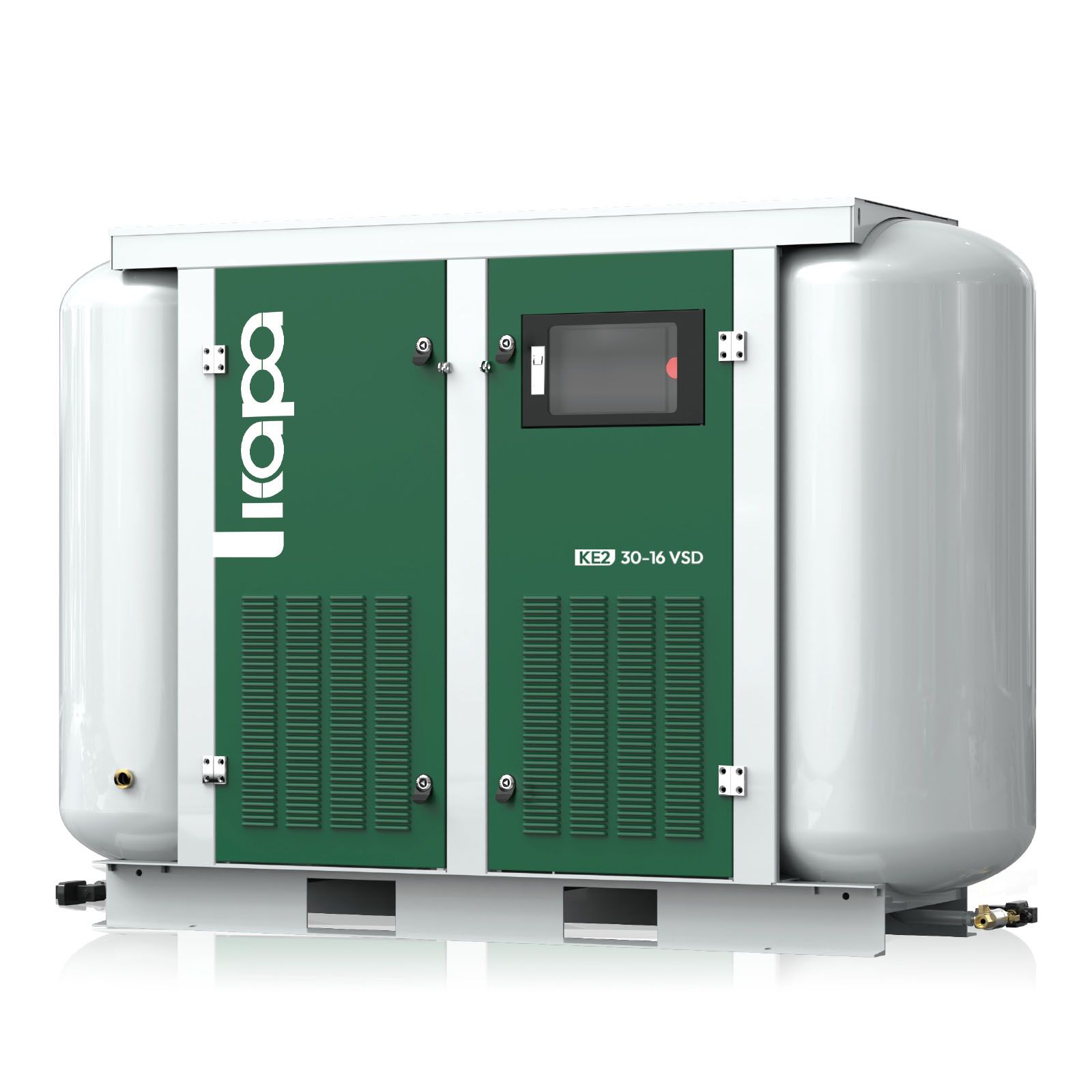

KE2 Series Laser-specific Integrated Gas Station

Comparison between New Laser-specific Integrated Gas Station vs   Traditional Laser-specific Air Compressor

Purchase only brings happiness, but replacement brings a sense of accomplishment

Fully Enclosed Oil-Cooled Motor

1. Cooling method - the oil-cooled motors are suitable for ambient temperatures ranging from -40 ℃ to +60 ℃ and are not affected by environmental dust and chemicals.

2. Cooling system - no attached cooling fan, no additional load increase, better dynamic balance and stability of the motor.

3. Protection level - IP65, fully enclosed structure, completely preventing foreign objects and dust from entering, and preventing water sprayed from each direction from entering the motor and causing damage.

4. Motor efficiency -> IE5 (motor body does not generate other heat losses, heat dissipation consumes power)

5. Magnetic steel grade - 48SHT/48UH

6. Magnetic steel temperature resistance -> 150 ℃

7. Variable frequency range - the variable frequency range is wider by 10% -100%, and the low frequency is not limited by the cooling capacity.

8. Fully enclosed structure, long service life, no external environmental interference factors.

Patented oil-gas tank

1. Adopt an enlarged horizontal oil-gas tank - the design ensures sufficient internal capacity space, and the main unit directly discharges the gas into the oil-gas tank, reducing pressure loss and pipeline faults,

2. There is an access port - can be regularly cleaned and maintained, and ensure the precision of internal manufacturing processes,

3. A shock absorber is installed - can prevent vibration transmission, reduce noise, and avoid pipeline loosening

4. Horizontal oil-gas tank design - although the manufacturing process is complex and the cost increases by 300%, the oil removal effect is improved by 50%

Desiccant air dryer

1. Structure and efficiency - multi-chamber modular design, compact structure and small volume, more than 50% smaller than traditional double-tower adsorption dryers under the same treatment flow rate;

2. Balanced airflow distribution - low pressure loss (below 0.03MPa), reducing gas loss.

High adsorption efficiency, customizable dew point of -40℃ or even lower, suitable for such industries as electronics and pharmaceuticals that require high air dryness.

3. Operating cost - low energy consumption, non-heat regeneration or waste heat regeneration technology, saving 30%-60% energy compared with traditional refrigerated dryers. The adsorbent has a long service lift (2-3 years), and is easy to replace, and the maintenance cost is reduced.

4. Maintenance and expansion - modular design supports flexible addition and reduction of adsorption towers to adapt to different treatment scales. The controller supports remote control and communication functions, simplifying operation and management;

Main unit1. Through independent R&D and design, achieve accurate fluid gap control; precise rotor profile design makes the product unique and distinct from the standard options of other manufacturers; the main unit is guaranteed for five years

2. Six-bearing structure, long rotor, large diameter, more stable, more reliable, low noise, long service life, high energy efficiency, large air capacity
