Should I Choose a Piston or Screw Compressor?

Jan. 10, 2024

When it comes to selecting a compressor for your industrial or manufacturing needs, one of the fundamental decisions is whether to choose a piston compressor or a screw compressor. Both types have their advantages and applications, and the choice depends on various factors. In this guide, we will explore the characteristics, advantages, and considerations for both piston and screw compressors to help you make an informed decision.


Piston Compressors: Overview and Characteristics


1. Working Principle


Piston compressors, also known as reciprocating compressors, operate on a simple yet effective principle. A piston moves back and forth within a cylinder, compressing air and forcing it into a storage tank. The repetitive motion creates compressed air that can be utilized for various applications.


2. Advantages of Piston Compressors


a. Cost-Effective

Piston compressors are generally more cost-effective upfront, making them an attractive choice for small to medium-sized businesses with budget constraints.


b. Simple Design

The design of piston compressors is straightforward, resulting in ease of maintenance and repairs. Replacement parts are readily available and affordable.


c. Suitable for Intermittent Use

Piston compressors are well-suited for applications where compressed air is needed intermittently. Their on/off cycle can be beneficial for tasks that do not require continuous compressed air.


Should I Choose a Piston or Screw Compressor?cid=18

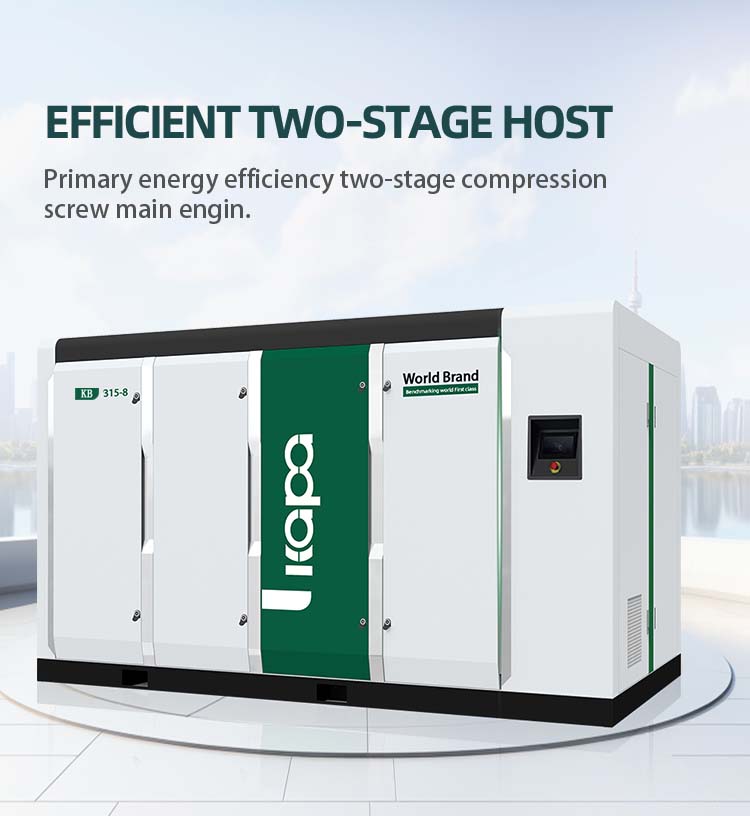

Double-stage compression permanent magnet variable frequency screw compressor

Screw Compressors: Overview and Characteristics


1. Working Principle


Screw compressors, on the other hand, operate using a pair of interlocking helical screws. As the screws rotate, they draw in air and progressively compress it along the length of the screws. The compressed air is then discharged for various applications.


2. Advantages of Screw Compressors


a. Continuous Operation

Screw compressors are designed for continuous operation, making them suitable for applications requiring a constant supply of compressed air. They are efficient in handling high-duty cycles.


b. Energy Efficiency

Screw compressors are known for their energy efficiency. They can provide a higher volume of compressed air with lower energy consumption compared to piston compressors.


c. Lower Maintenance Requirements

Screw compressors typically have fewer wearing parts, resulting in lower maintenance requirements. They are often equipped with advanced control systems for optimal performance.


Considerations for Choosing Between Piston and Screw Compressors


When deciding between a piston or rotary screw compressor for your business, it's crucial to weigh factors such as initial and operating costs, energy efficiency, duty cycle, and service intervals. Additionally, noise levels should be considered as an additional factor in the decision-making process.


1. Initial Cost vs. Operating Costs. Budgeting for a compressor. It's not just about the upfront expense; you also need to factor in the long-term operating costs. Up to 70-75% of a compressor's lifetime operating costs are attributed to energy usage, making it essential to consider this aspect when selecting a compressor technology. Pistons have a lower initial cost than screws, but screws cost much less to operate over time.


2. Energy Efficiency. If both a piston and a screw were running the same amount of hours, the screw compressor will be much more efficient and have lower operating costs than the piston over the lifetime of the compressor. When selecting a technology, ask yourself: Is the initial or lifetime cost more important to you and your business?

3. Duty Cycle: Piston compressors are suitable for applications with low duty cycle requirements and limited daily running hours due to their duty cycle limitations. On the other hand, screw compressors are designed for long duty cycles, capable of running continuously at 100% capacity.


4. Service Intervals: Piston compressors, with more moving parts, experience increased wear and tear compared to screws. Screw compressors exhibit reduced wear, resulting in lower maintenance needs. However, it's crucial to maintain a consistent maintenance schedule for any compressor type to ensure machine efficiency and optimal system performance.


5. Noise Levels: Piston compressors tend to be noisy, especially when compared to screw technology. If a lower noise machine is desired or if low noise levels are a requirement, considering a screw compressor may be advantageous.


Conclusion: Making Informed Choices

In conclusion, the choice between a piston and screw air compressor is a critical decision that requires careful consideration of your specific operational needs, budget constraints, and long-term goals. Both types of compressors have their advantages, and the right choice will contribute to the efficiency and productivity of your industrial or manufacturing processes.


If you need further assistance in choosing the right compressor for your needs or are looking for a reliable supplier, don't hesitate to contact us. Our team of experts is ready to provide guidance and ensure that you make an informed decision based on your unique requirements.
