30HP 22KW 5in1 Rotary Screw Air Compressor | 98.53CFM @ 232PSI | 220V 3-Phase 60Hz | RP1" | VSD

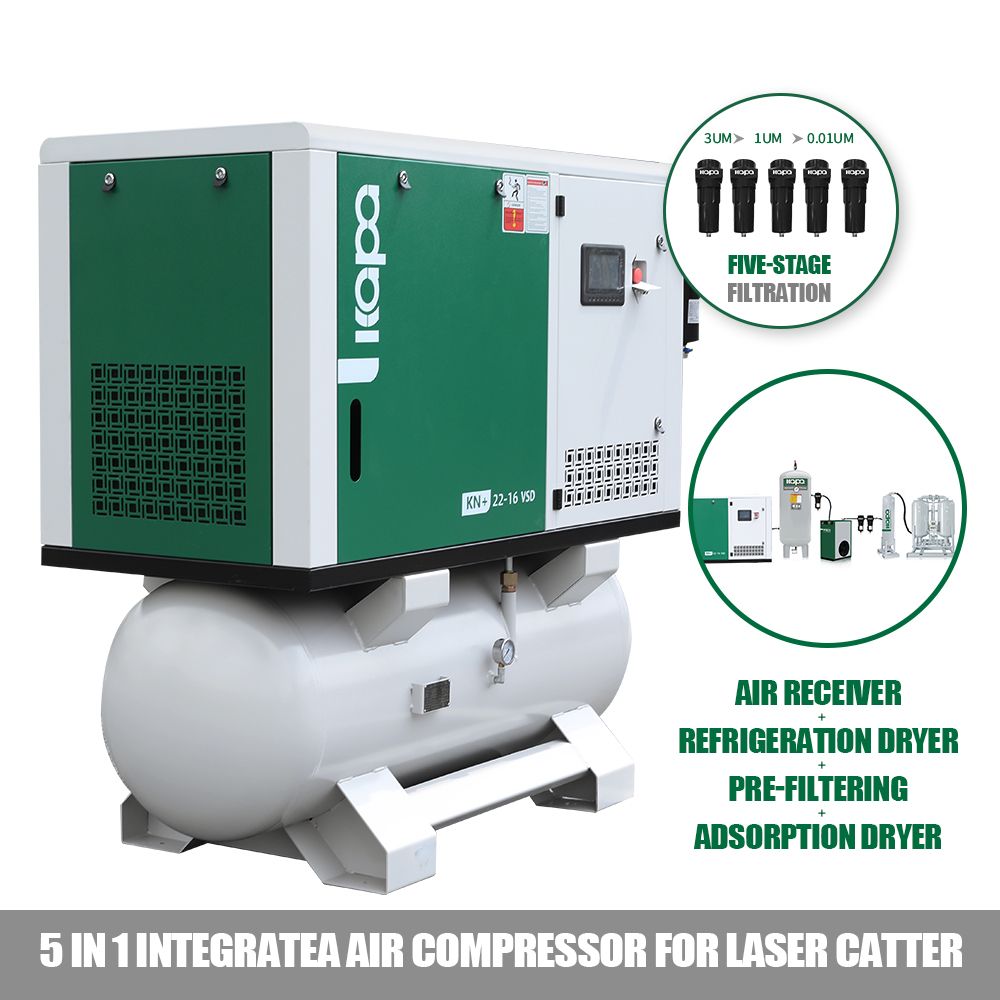

A. Integrated air compressor + refrigerated dryer + filter + air tank + Adsorption dryer
B. Compact structure design reduces equipment footprint by more than 50%
C. The laser cutting level 0 oil-free standard is achieved upon delivery
D. Low equipment + installation + maintenance costs
E. Air pressure fluctuation ≤±0.02MPa
1. Five-in-One Highly Integrated System

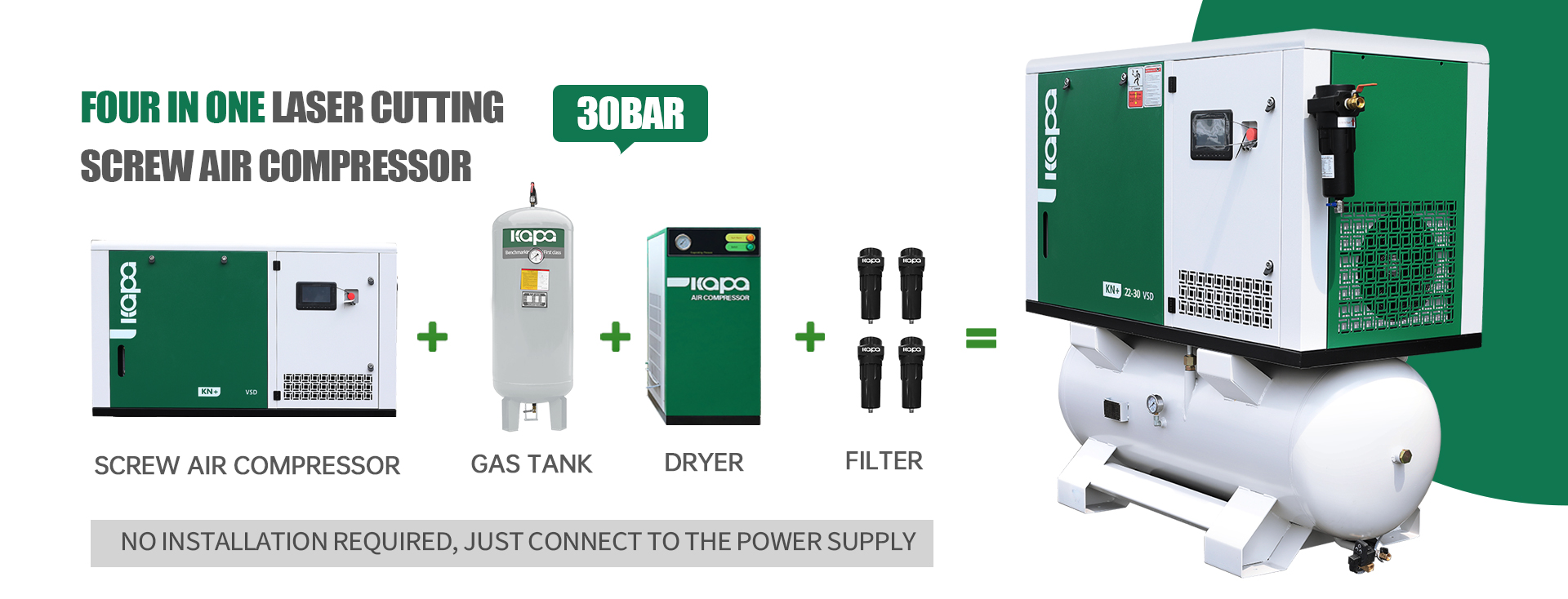

All-in-One Design: Integrates air compressor + refrigerated dryer + filters + air receiver + Adsorption dryer, eliminating complex external equipment installation.
Space-Saving: Compact structure reduces footprint by over 50%, ideal for space-constrained workshops.
2. Smart Control for Stable Laser Cutting Performance
Intelligent Synchronization: Communicates with laser cutter PLC to dynamically match gas pressure (adjustable 0.8~1.5MPa), preventing cutting accuracy issues caused by pressure fluctuations.
AI Early Warning System: Built-in sensors monitor vibration, temperature, and pressure differentials to pre-alert potential failures (e.g., filter clogging).
Remote Monitoring: IoT-enabled for real-time data access, energy reports, and maintenance alerts via mobile/PC.
4. Extended Lifespan & Low Maintenance

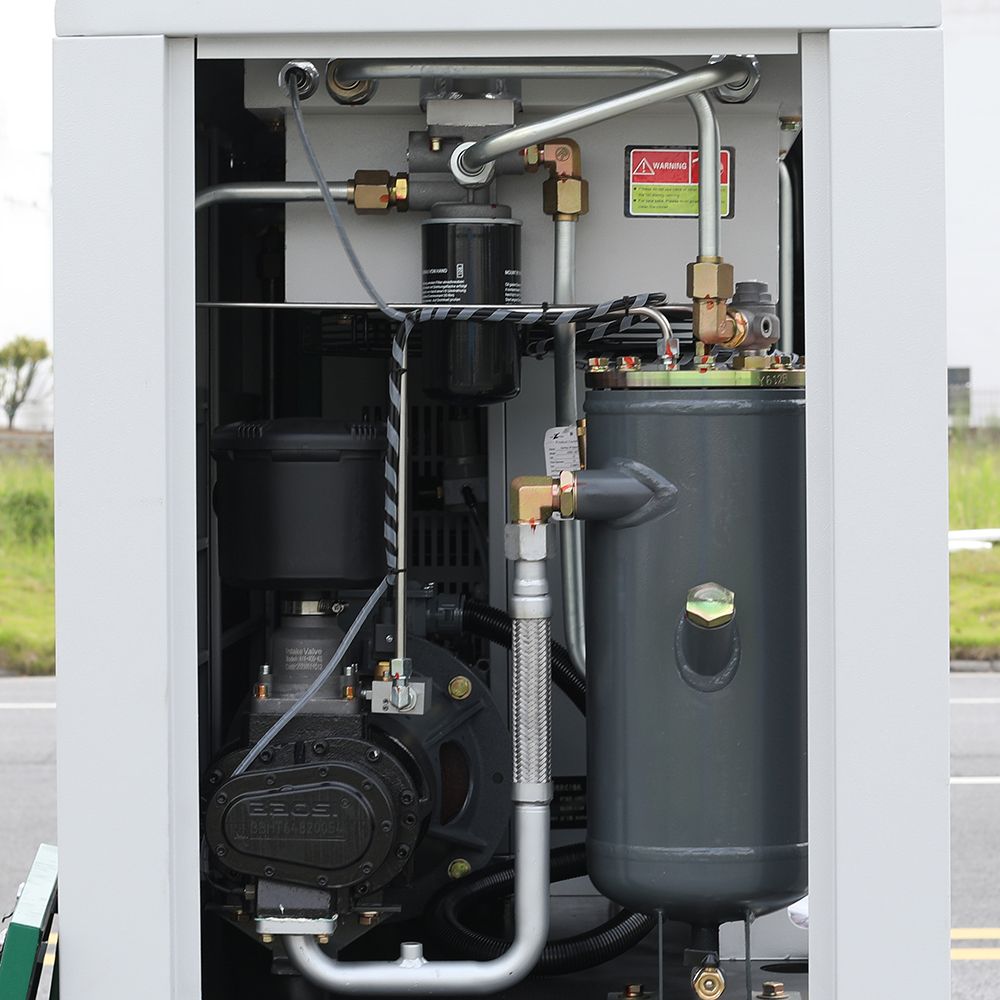

Aerospace-Grade Screw Unit: Stainless steel rotor with nano-coating technology ensures 100,000+ hours of service life.

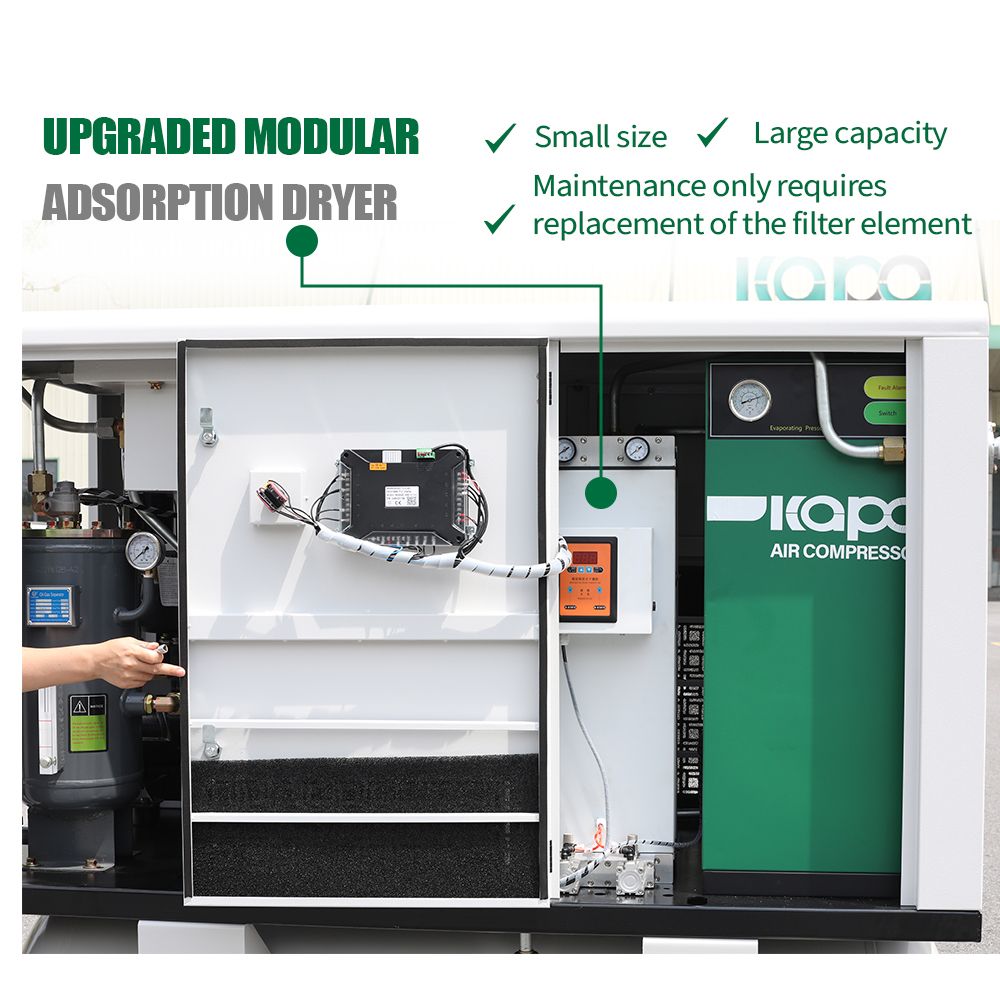

Modular Design: Quick replacement of filters/dryer components cuts maintenance time by 60%.
Self-Cleaning System: Auto-drainage + reverse-purging extends filter lifespan 2-3x.
5. Optimized for Laser Cutting
Ultra-Low Dew Point (-40°C): Deep moisture removal prevents lens fogging.
Dual-Stage Precision Filtration: 0.01μm particulate filtration ensures oil-free, dry, and dust-free cutting gas.
Quiet Operation: ≤65dB noise level (1m distance) improves workshop environment.
Advantages vs. Traditional Solutions
| Feature | Traditional Split Systems | Five-in-One Laser Screw Compressor |
|---|---|---|
| Energy Use | High (multiple independent devices) | 30%+ energy savings |
| Footprint | Large (dispersed installation) | 50% space reduction |
| Air Quality | Requires extra filters (high maintenance) | Factory-certified Class 0 oil-free standard |
| Stability | Pressure fluctuation ±0.2MPa | ≤±0.02MPa fluctuation |
| Total Cost | High (equipment + installation + maintenance) | 40% lower TCO over 3 years |

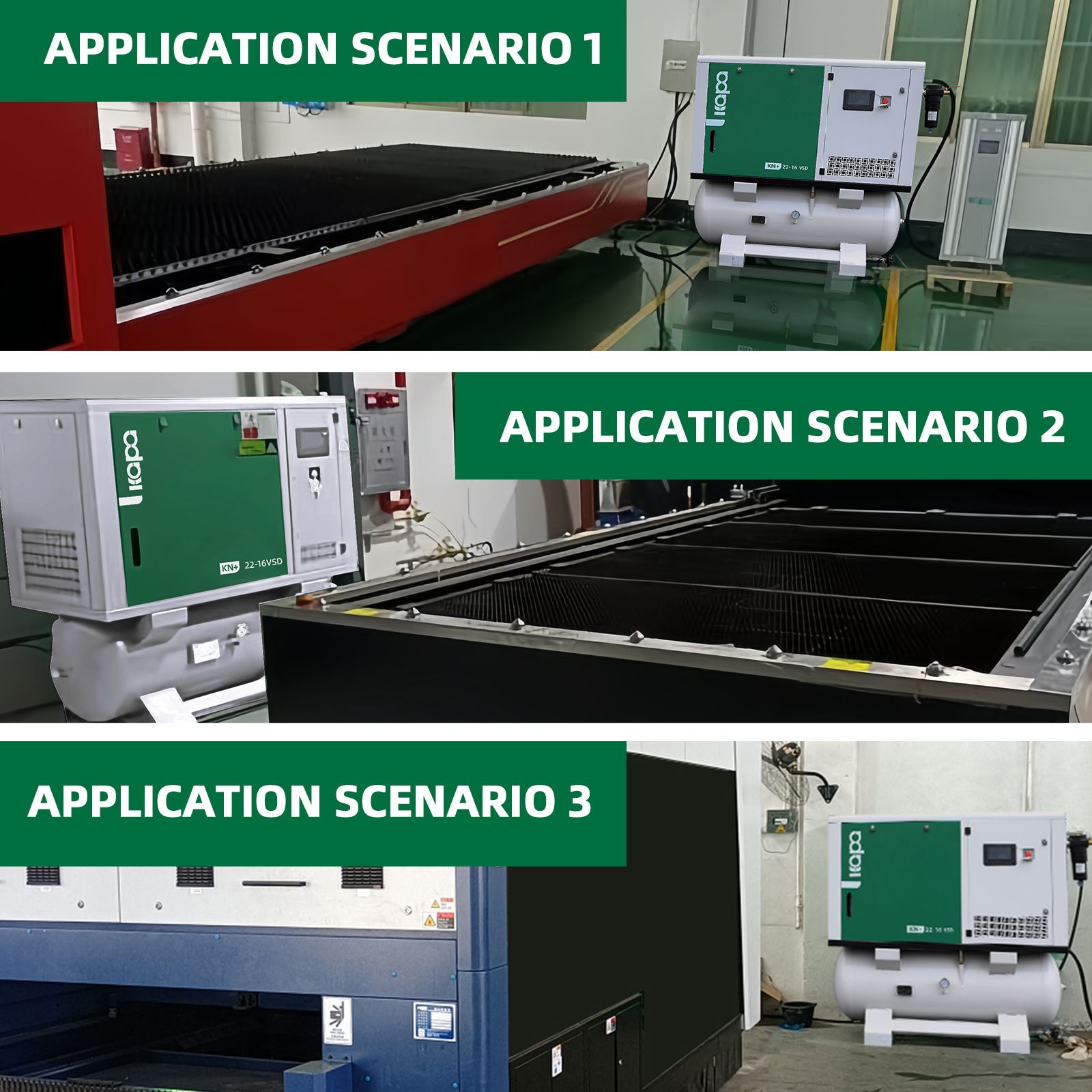

Typical Applications
High-Precision Laser Cutting: Carbon steel/stainless steel/aluminum plate processing
New Energy Industry: Battery electrode cutting, PV silicon wafer processing
Precision Sheet Metal: Medical devices, electronics housing manufacturing
This all-in-one solution significantly enhances laser cutting efficiency and yield while reducing lifecycle costs. Contact us for detailed technical specs or industry case studies!
AIR COMPRESSOR MAINTENANCE
01
The air compressor shouldbe placed in a place withclean air and good ventilation.
02
The air compressor should be placedhorizontally, with the belt side facingthe wall, and the maintenancespaceshould be reserved.
03
Before repairing and disassemblingthe air compressor, please tum offthe power supply and dischargethe air in the air seam.
04
When wiring, check whether thefan rotation direction is consistentwith the arrow direction.
ENERGY SAVING THCHNOLOGY
The starting power of the original system is 555kw,and the starting power of the new system is 320kw.
Power saving of 17000o kWh per month
The starting power of the original system is 240kW,and the starting power of the new system is 132kw.
Power saving of 54000 kWh per month
The starting power of the original system is 446kW,and the starting power of the new system is 325kW.
Power saving of 86000 kWh per month
The starting power of the original system is 690kw,and the starting power of the new system is 420kw.
Power saving of 260000 kWh per month
The starting power of the original system is 732kW,and the starting power of the new system is 50okw.
Power saving of 167000 kWh per month
The starting power of the original system is 430kw,and the starting power of the new system is 320kw.
Power saving of 79000 kWh per month
